Multifunctional Hydraulic Oil Press Machine
Model NO. : 6YY-400D、6YY-400S
1.Double‑cylinder design: Alternate feeding & pressing, improve continuous working efficiency.
2. High‑pressure hydraulic system: 300‑ton thrust, high oil yield, good squeezing performance for high‑oil‑content nuts & seeds
3. Cold press physical extraction: Keep natural nutrition of edible oil, no destroy oil flavor.
4. Strip‑row filter barrel: Smooth oil outflow, good filtering effect, less oil residue.
5. Sturdy heavy‑duty frame: 1650kg heavy body, stable running, long service life for commercial continuous production.
6.Multi‑oilseed compatibility: Works for olive, walnut, sesame, coconut, sunflower, hemp seed, groundnut and more nuts & seeds.
Quantity:
Product Specifications

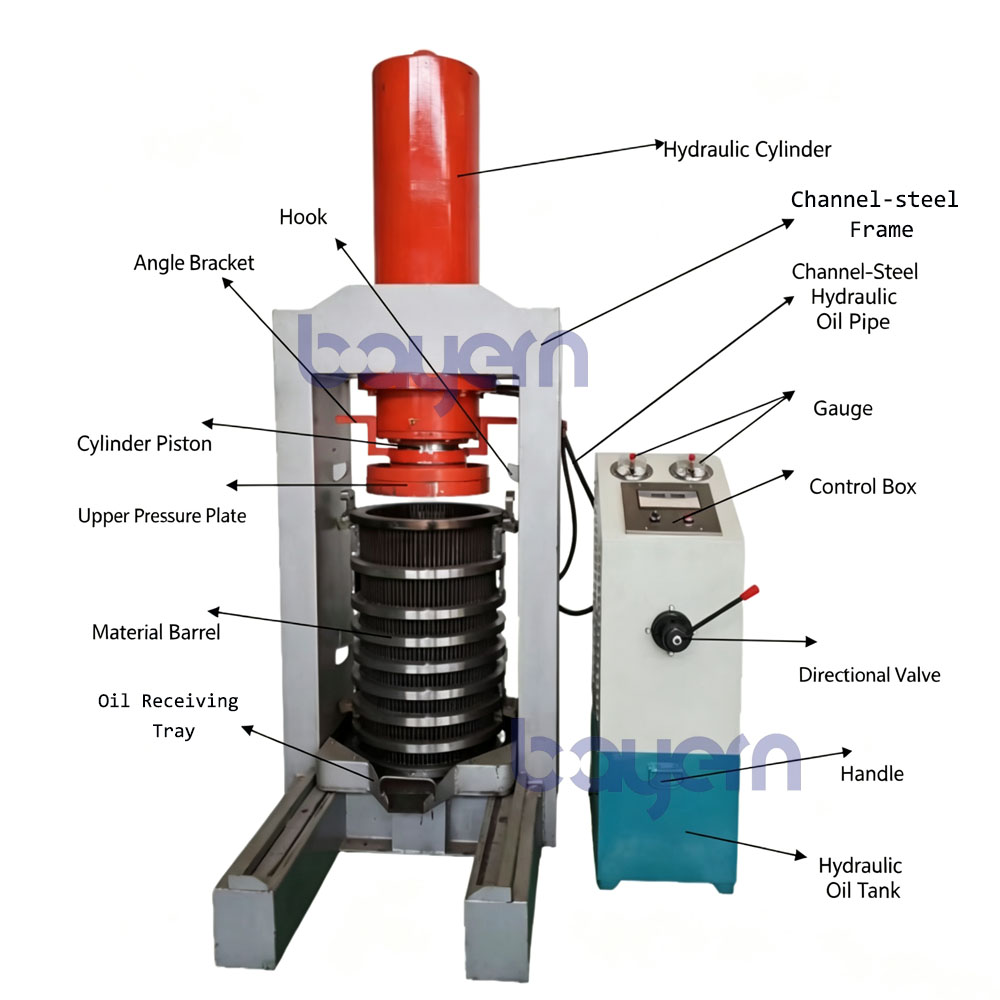

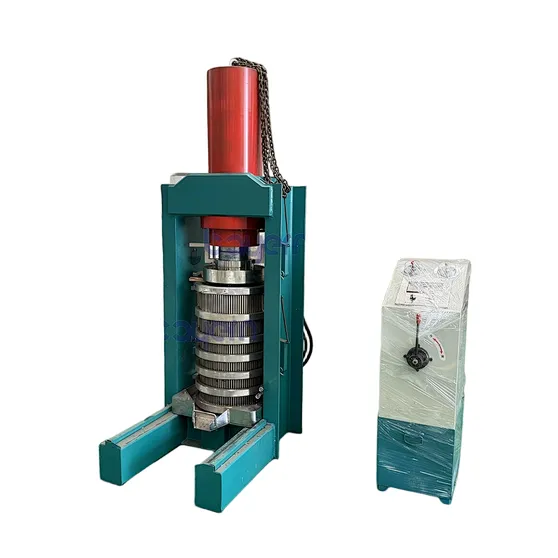

6YY‑400S strip‑row double‑cylinder hydraulic oil press machine is a vertical hydraulic oil extraction machine, designed for commercial oil processing. Adopting high‑pressure hydraulic pressing principle, it supports cold press for various oil‑seeds,realizing physical squeezing without high‑temperature damage to oil nutrition.
This double‑barrel hydraulic oil press features large‑capacity material barrels, 300‑ton strong working thrust, stable ≤60MPa working pressure. It is widely suitable for olive, sesame, walnut, hazelnut, argan, coconut, sunflower seed, palm fruit, hemp seed, grape seed, black seed, groundnut, rice bran and other oil‑bearing materials, ideal for small‑medium edible oil factories and oil workshops.
Product Parameters ：
Model number | 6YY-400D | 6YY-400S |
|---|---|---|
| Voltage | AC 380V | AC 380V |
Power | 3000W | 3000W |
| Number of barrels | ONE | TWO |
| Single Barrel Capacity | 60-80KG | 60-80KG |
| Material Barrel Diameter | 400mm | 400mm |
| Material Barrel Height | 785mm | 785mm |
| Working Pressure | ≤60 MPa | ≤60 MPa |
| Working Thrust | 300000KG | 300000KG |
| Whole Machine Weight | 1420KG | 1650KG |
Overall dimension | 1100×1900×2400mm | 1100×1900×2400mm |
Main Applications：
This vertical hydraulic oil press machine is applies to a wide range of oil‑bearing seeds and nuts: sesame, peanut, rapeseed, flax seed, tea seed, almond, walnut, pine nuts, sunflower seed, perilla seed, pumpkin seed and other raw materials.
